Redtiger F7N Dash Cam Hardwire Kit For Parking Monitor
· Enable 24/7 parking monitor
· Record even When the Vehicle is Turned off
· For T27/F4/F8/F9/F17/F77/A4/A6 Dash Cam
Hardwire Kit: Installation & Usage Guide
Why You Need a Hardwire Kit
Some dash cams can continue recording even when the vehicle is turned off—this is made possible through parking mode, which allows the camera to monitor surroundings and capture footage while parked.To enable parking mode, the dash cam needs a constant power supply even when the engine is off. A hardwire kit provides this by connecting the camera directly to your car’s fuse box, while also helping to prevent battery drain through built-in low-voltage protection.
Why You Need a Hardwire Kit
Some dash cams can continue recording even when the vehicle is turned off—this is made possible through parking mode, which allows the camera to monitor surroundings and capture footage while parked.To enable parking mode, the dash cam needs a constant power supply even when the engine is off. A hardwire kit provides this by connecting the camera directly to your car’s fuse box, while also helping to prevent battery drain through built-in low-voltage protection.

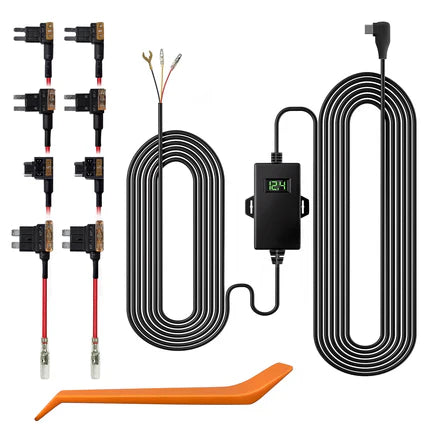

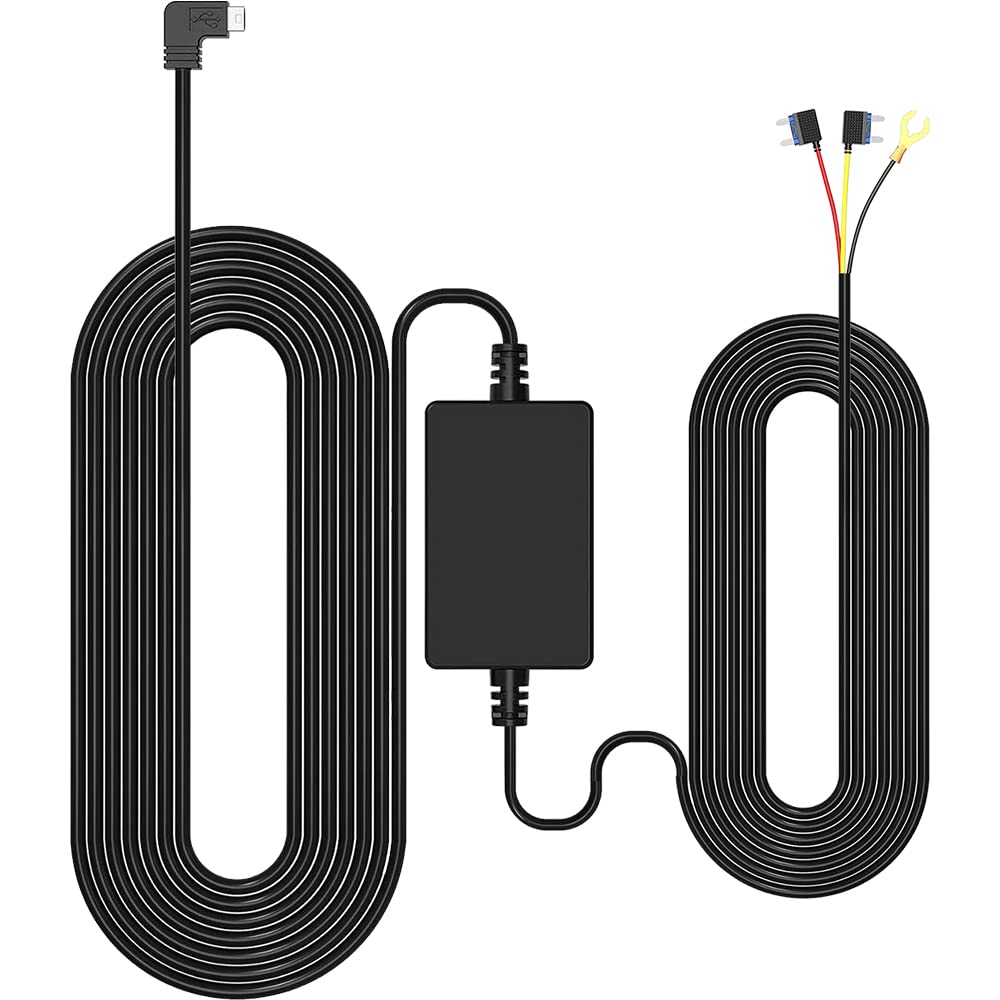

USB-C hardwire kit

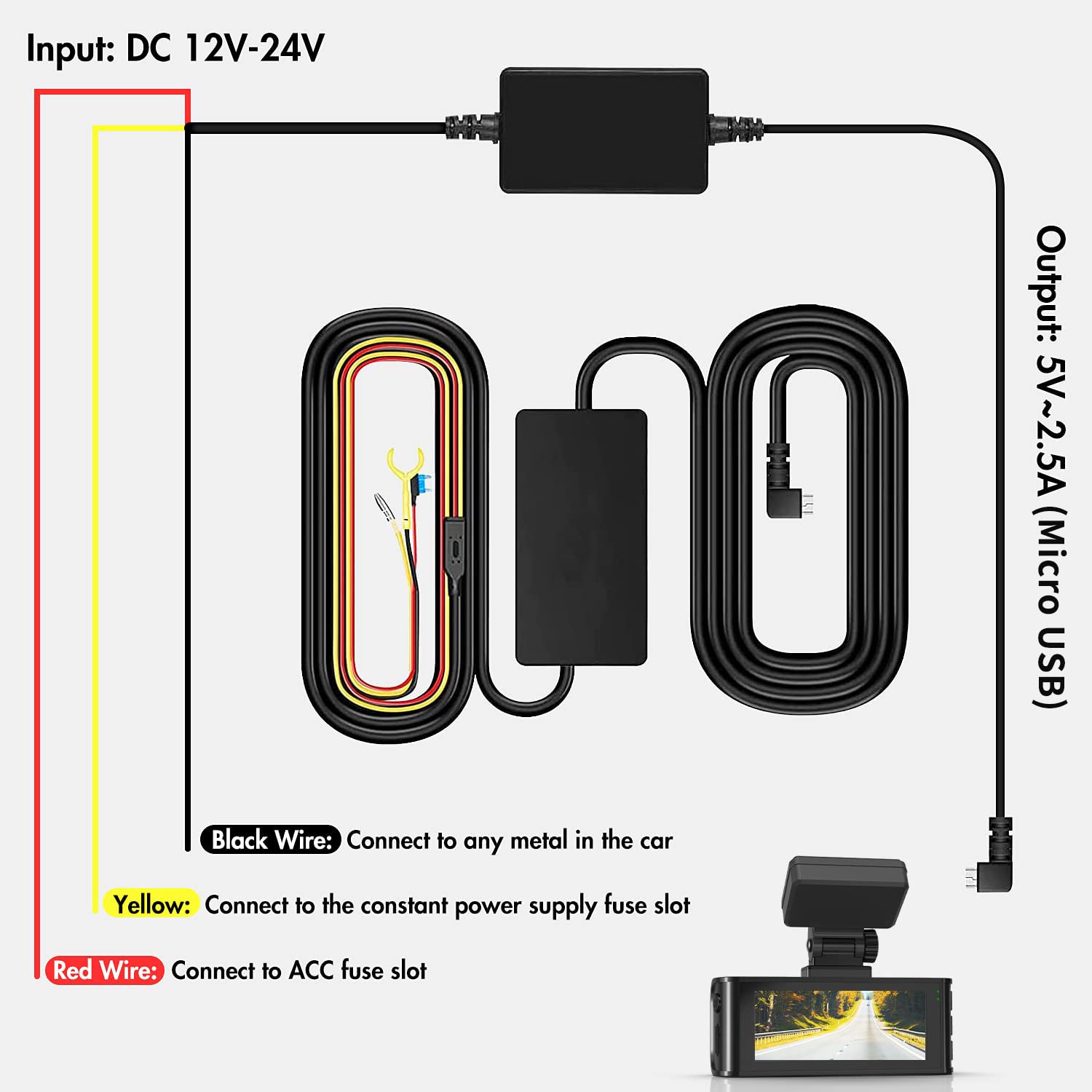

11.5ft (3.5m) USB-C hardwire kit for dash cam or other device powered by Micro USB port , 5V/2A steady output, voltage input supports from 12V-24V.
USB-C hardwire kit
11.5ft (3.5m) USB-C hardwire kit for dash cam or other device powered by Micro USB port , 5V/2A steady output, voltage input supports from 12V-24V.
Simplified Installation
This mini USB fuse hardwire kit eliminates the need for a cigarette lighter cable, providing a permanent, discreet power solution with straightforward setup.
Simplified Installation
This mini USB fuse hardwire kit eliminates the need for a cigarette lighter cable, providing a permanent, discreet power solution with straightforward setup.
24-Hour Parking Surveillance
The hardwire kit connects directly to your vehicle's fuse box or battery, enabling continuous power supply for around-the-clock monitoring, even when the ignition is off.
24-Hour Parking Surveillance
The hardwire kit connects directly to your vehicle's fuse box or battery, enabling continuous power supply for around-the-clock monitoring, even when the ignition is off.

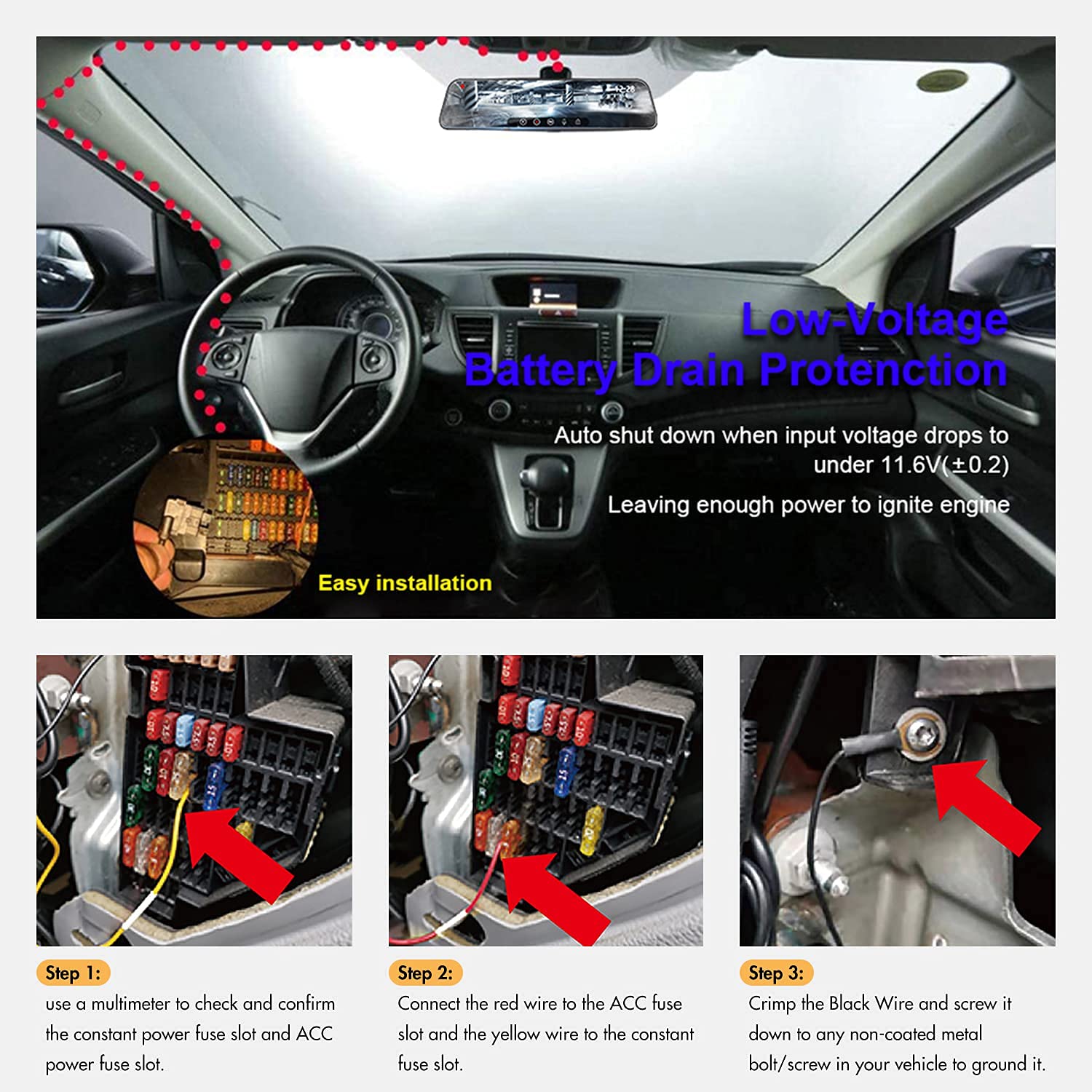

Low Voltage Protection & Safety Features
The REDTIGER hardwire kit includes automatic low voltage protection. When the vehicle’s battery drops below 11.8V ±0.2, power will be cut off within 60 seconds to prevent battery drain.It also features multiple safety protections, including over-current, short-circuit, reverse polarity, and overheating safeguards.Not suitable for trucks or vehicles with voltage above 24V.

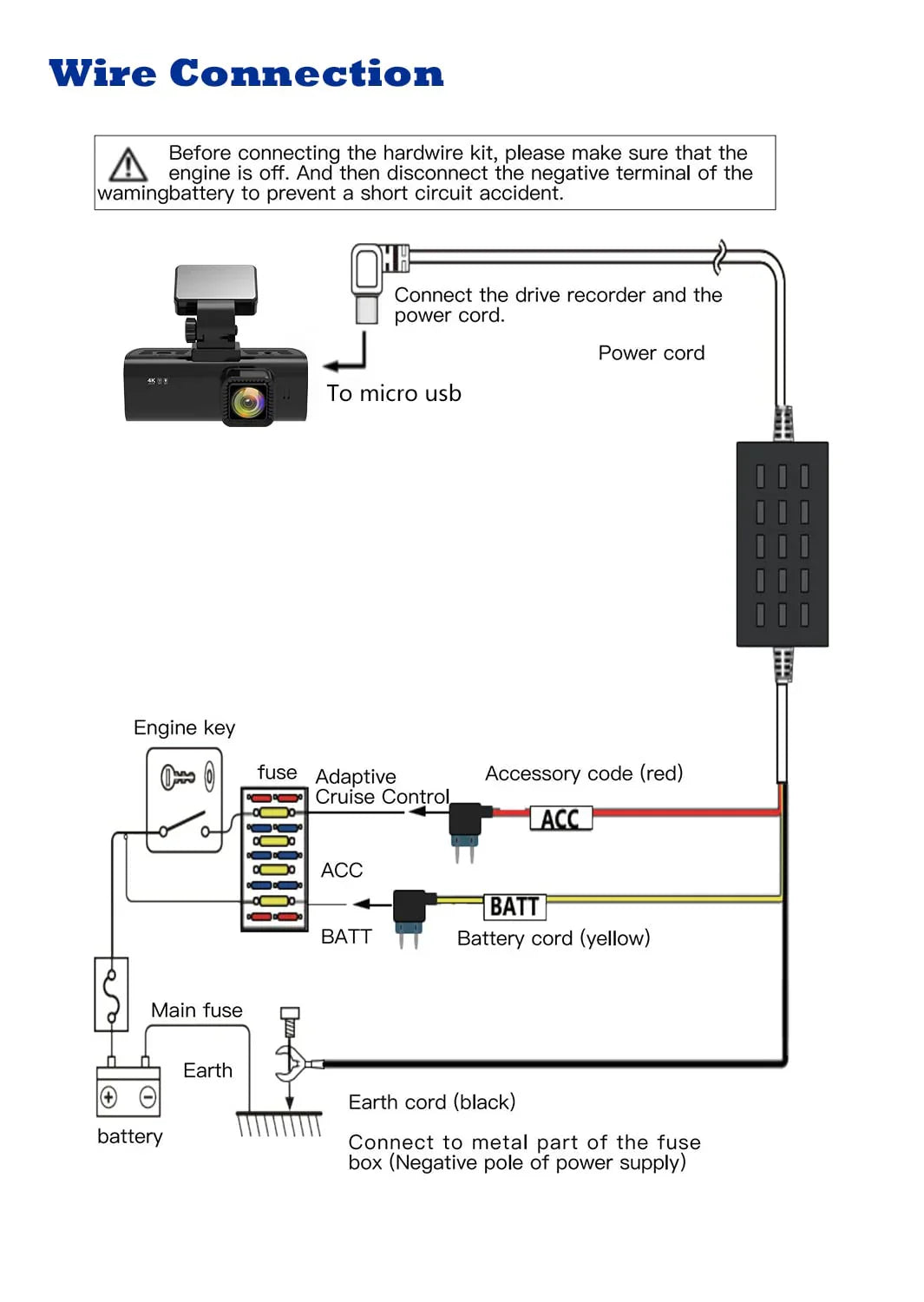

Installation Guide
How do I install the hardwire kit to enable parking mode?
